Atlas Commercial Grade Extra Tall 10,000lb 2 Post Lift

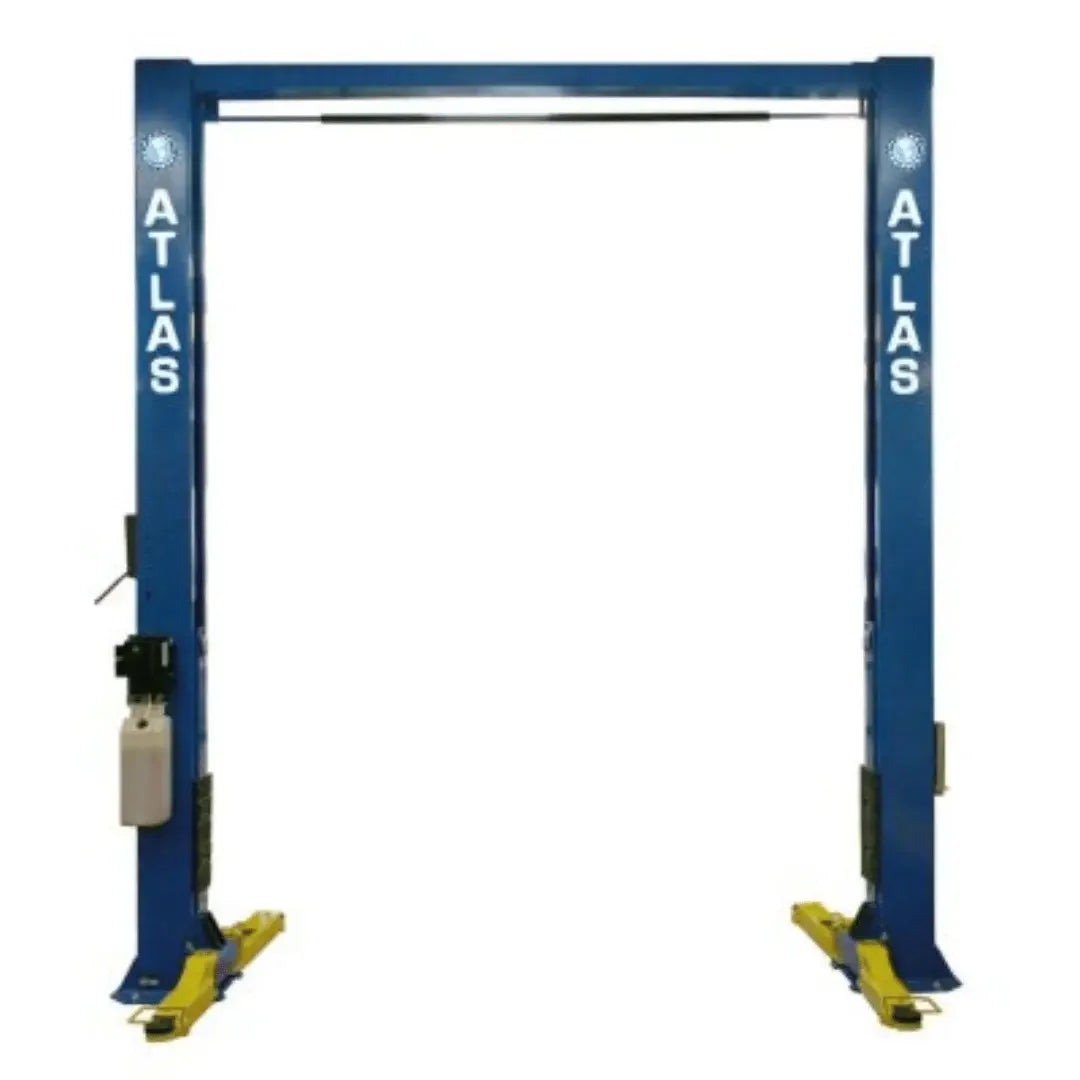

Atlas OHX10000X Commercial Grade Extra Tall 10,000 lb. Capacity 2 Post Lift (Will Call)
The Atlas OHX10000X 2 post commercial-grade above-ground lift is designed for both large-scale automotive service centers and dedicated home users seeking premium performance and reliability. Built with exceptional engineering, this lift delivers a true 10,000 lb capacity, making it an ideal solution for shops that handle a wide variety of vehicles, from compact Smart Cars to heavy-duty one-ton diesel trucks. Its durable design ensures long-term dependability and consistent lifting precision under demanding conditions.
Engineered for versatility, the Atlas OHX10000X features extended lifting height and generous column spacing, providing the flexibility to service everything from low-profile sedans to tall cargo vans and ladder trucks. The extra clearance also offers a practical advantage when maneuvering vehicles through the bay or transitioning between workspaces. For operators over 6 feet tall, the longer cylinder design allows vehicles to be raised approximately 3 inches higher than most comparable models, improving accessibility and overall comfort during undercar work.
The lift’s structural integrity is defined by its one-piece 12 ft 7 in formed steel columns and reinforced extra-long carriage system. This configuration enhances both column and arm strength, ensuring superior stability and safety during lifting operations. The precision manufacturing process provides exceptional balance and smooth operation, supporting the Atlas brand’s reputation for professional-grade equipment built to last.
Requiring a minimum ceiling height of 13 feet, the Atlas OHX10000X is a robust and reliable choice for facilities that demand top-tier performance and a long service life. With its combination of strength, versatility, and thoughtful engineering, this lift continues to be a standout option for professionals and serious enthusiasts who value safety, quality, and productivity in their workspace.
Product Features
- 10,000 lb. Capacity
- Commercial Grade
- Extra Tall & Extra Wide
- Overall height: 152? (12? 8?)
- Symmetric arms
- Automatic Arm Restraints
- “Padded” Shut-Off Bar
- Rubber Covers on Carriages
- Single Point Lock Release
- Dual Direct-Drive Cylinders
- Powder Coat Finish
- Free 12 Piece Truck Adapter Set
- Mounting Hardware Included
- Shipping Weight: 1,665 lbs
- 5 yr Structural ‐ 2 yr Hydraulic Warranty ‐ Parts Only
- This part number WILL CALL ONLY

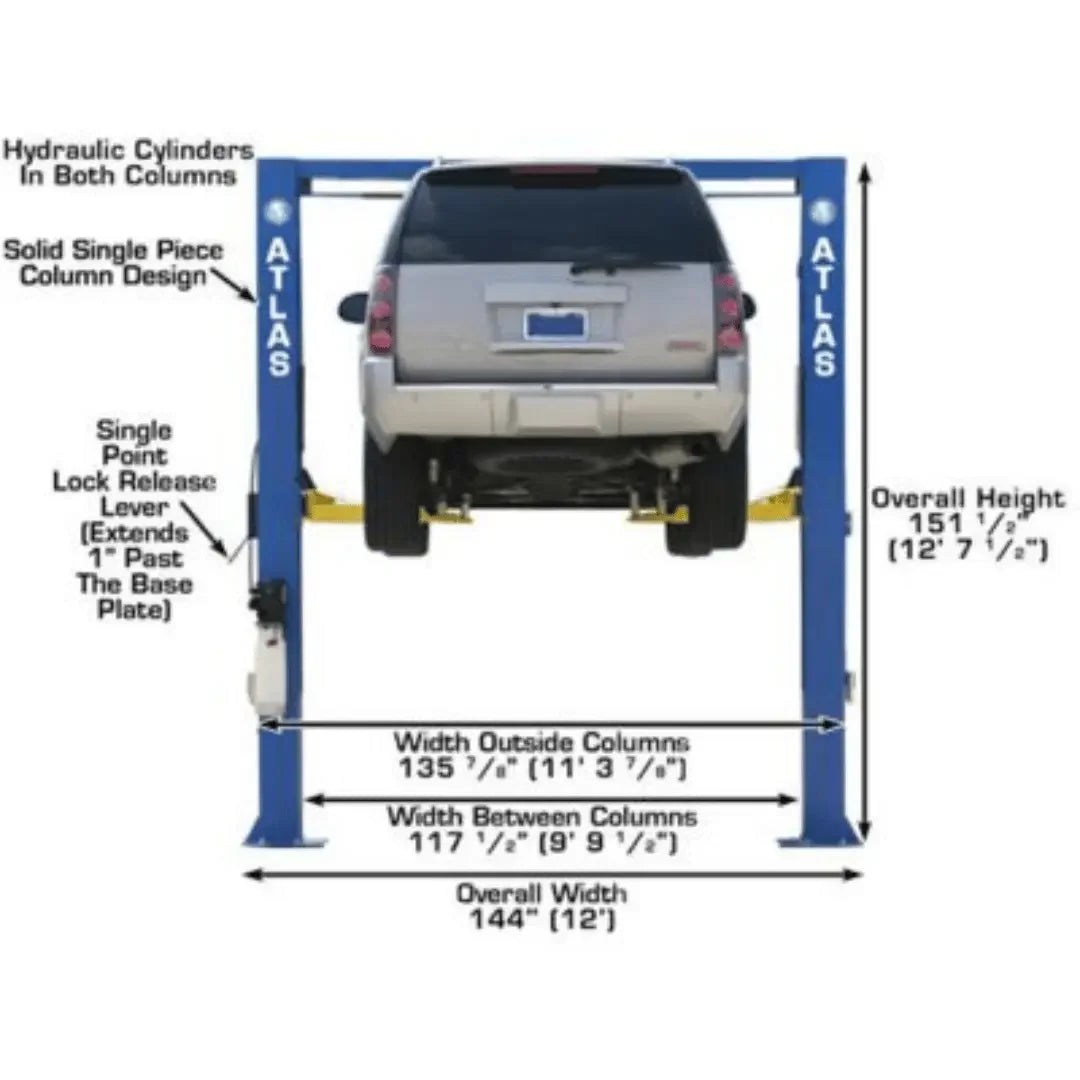

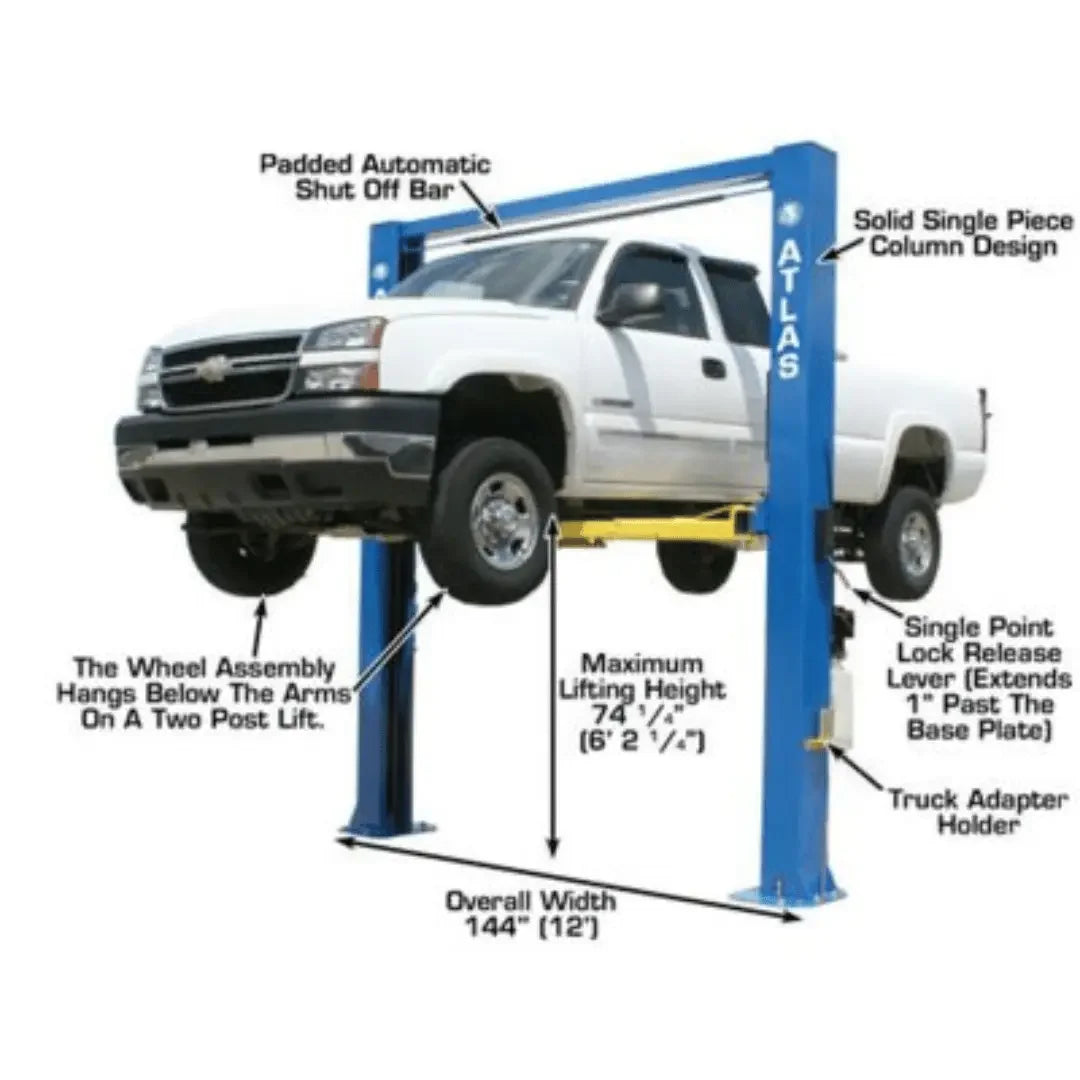

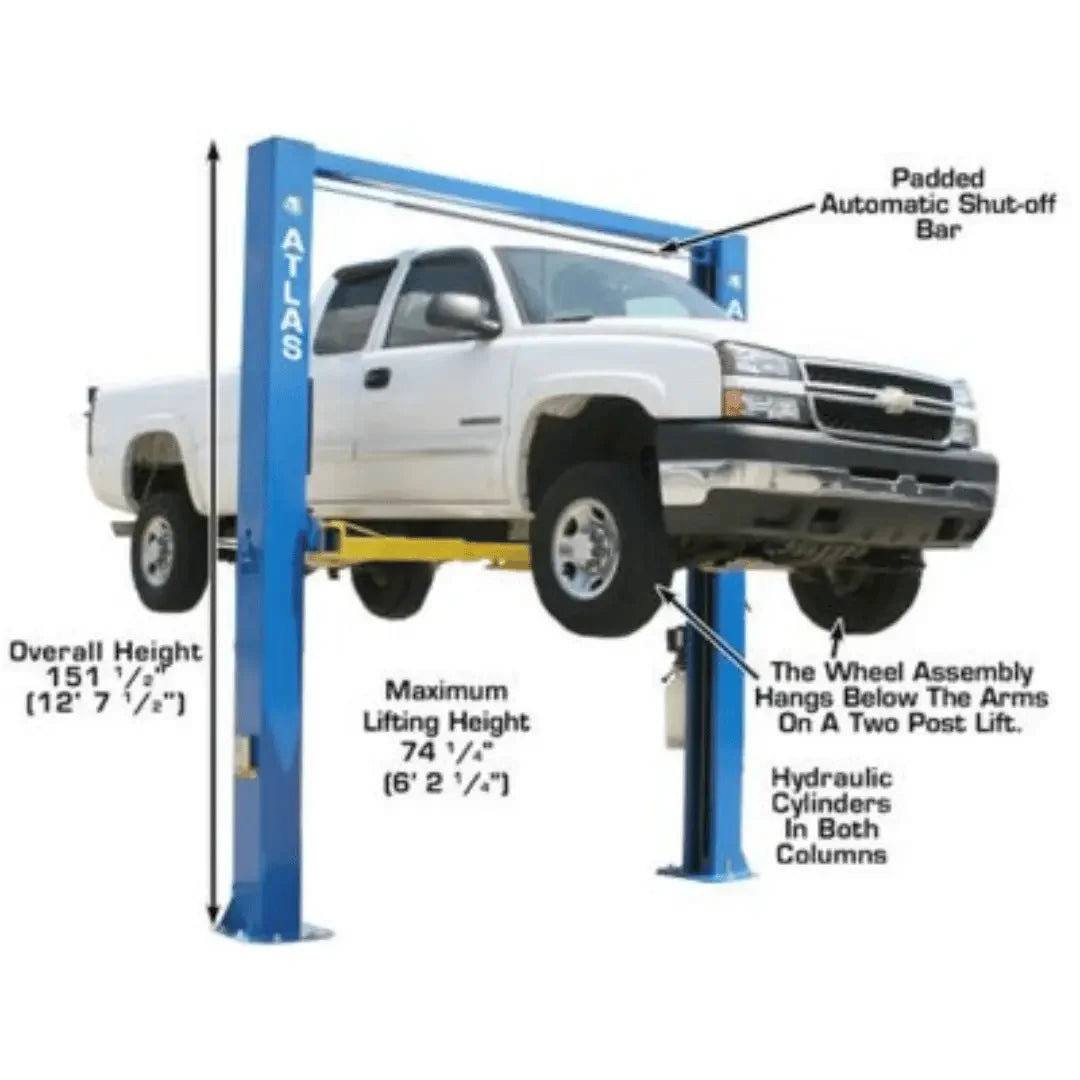

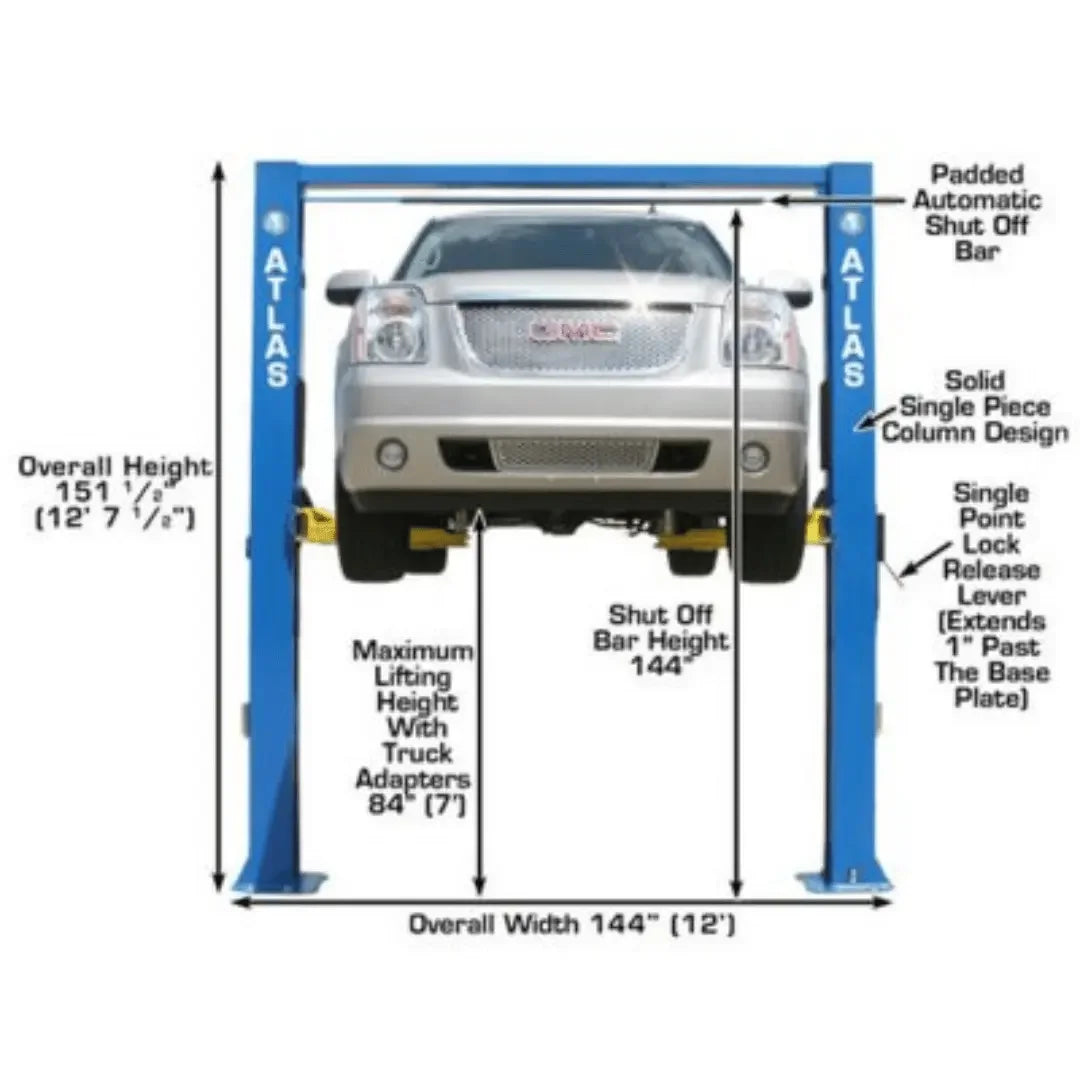

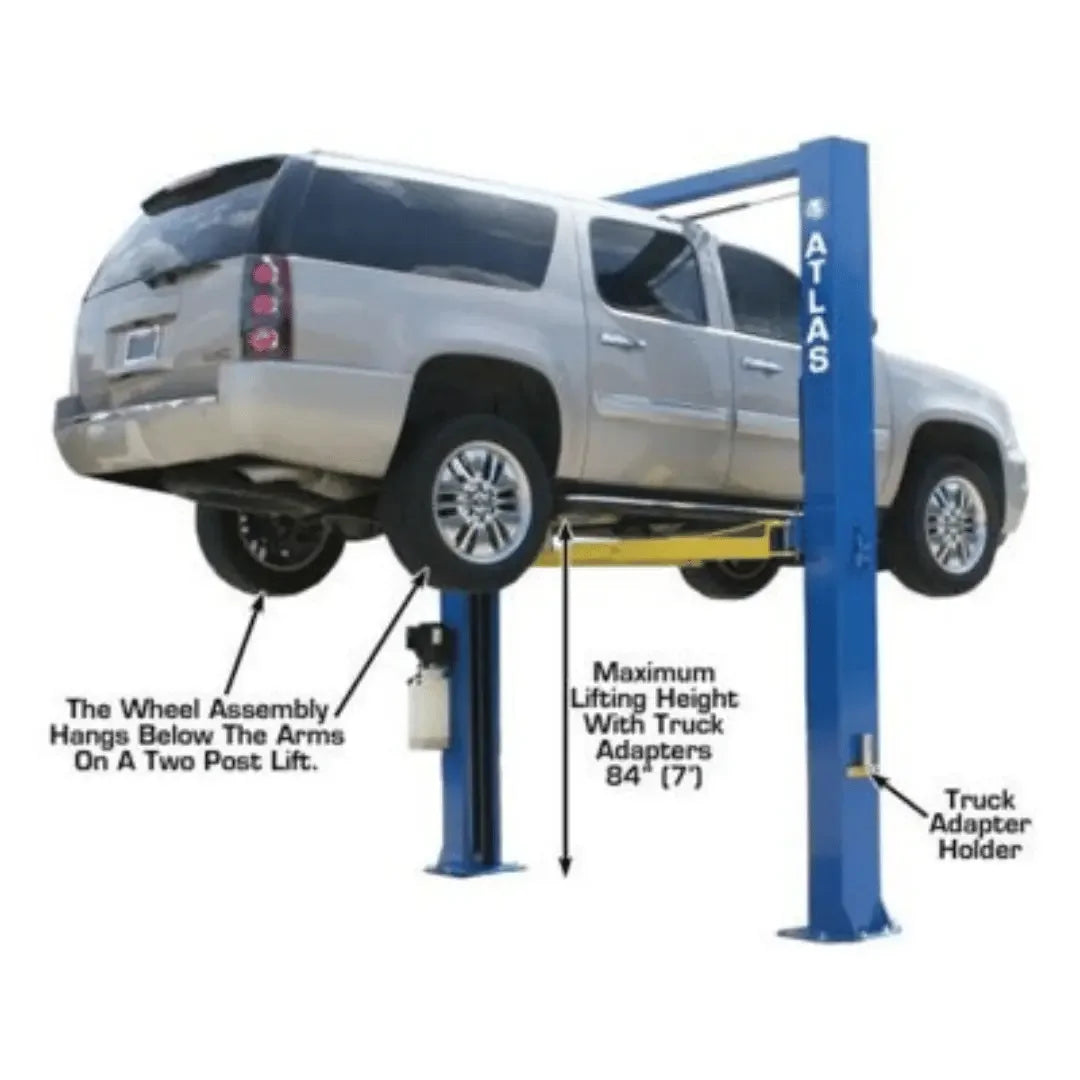

Product Specifications
| Model | ATTD-OHX10000X |
| Capacity | 10,000 lbs. |
| Overall Height | 152" (12' 8”) |
| Overall Floor Width | 144 3/8" (12' 3/8") |
| Outside Column to Outside Column | 136" (11' 4") |
| Max Lift Height (Without Adapters) | 74 3/4" |
| Max Lift Height (With Adapters) | 85 3/4" |
| Minimum Arm Height | 4 1/2" |
| Inside Column | 118 1/4” (9' 10 1/4”) |
| Drive Thru | 106 7/8” (8' 10 7/8”) |
| Column Size | 9 1/8" x 11" |
| Column Steel Thickness | 5mm |
| Base Of Lift | 18 1/2" x 21 1/2" |
| Motor/Electrical | 220V single phase (30A breaker recommended) |
| Oil Requirement | 3-5 Gal. AW32/AW46 (NOT INCLUDED) |
| Shipping Weight | 1,665 Lbs |
| Adapter Heights | 4 Each 2”, 3”, 6” |
| Arm Hole/Adapter Peg Size | 1.5” |
| Concrete Requirement | Min. 4" @ 3000 psi |
