Tuxedo iMobile MSC-6KLP 6,000 lb Low Profile Mobile Single Column Lift

SKU/Product #: MSC-6KLP

Tuxedo

Write a review
$4,649.00


Free Shipping
7-10 Business Days
Shipping Calculated at Checkout
7-10 Business Days
Power Options
Pick Up and Save

Product Description

Tuxedo iMobile MSC-6KLP 6,000 lb Low Profile Mobile Single Column Lift

New Improved Low Profile design with less than 4” minimum height and ‘double telescoping’ Screw Pads with 2-3/4” adjustable height! Tuxedo car lift uses "pallet jack" style hydraulics to raise lift onto wheels. Rolls right under vehicle. Lifting capacity of 6,000 lbs

Spin Up Adapters

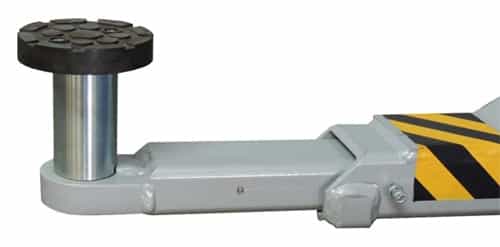

Low Profile ‘Double Telescoping’ Screw Pads

Low Profile

Low Profile ‘Drive-Over’ Ramp & Frame

Product Features

  • 6,000 lb. lifting capacity
  • Great for ATV's & Motorcycles
  • Improved Low Profile design with less than 4" minimum height!
  • Improved "double telescoping" screw pads with 2/4" adjustable height!
  • Rolls right under vehicle or use the unique drive-over design to easily position lifting points
  • Pallet Jack style hydraulics to raise lift onto wheels
  • Heavy Duty 13" x 10" structural column
  • Durable "chain-over" cylinder design uses a 3"x36"cylinder and 846 leaf chain
  • 2 sets of 4ea of 2” & 4" Height Adapters
  • Single point lock release
  • Fully adjustable Swing Arms
  • Powder coat paint finish

Product Specifications

Lift Model MSC-6KLP
Capacity 6,000 lbs
Overall Height 102-3/8”
Overall Width 45-3/16”
Overall Length 101-9/16”
Lift Rise Height 72"
Drive-Over Frame Base & Ramp Height 3-15/16”
Swivel Pad Height (min./max.) 3-7/16” – 6-5/16”
Main Side Swing Arms (min./max.) 19-11/16” – 26”
Off Side Swing Arms (min./max.) 24-5/8” – 34”
Power 110VAC, 20Amp, 1PH
Ship Weight 1,826 lbs

Pick Up and Delivery

Our Pick Up locations for Tuxedo are located in Temecula, California - Orlando, Florida - Norcross, Georgia - Marshalltown, Iowa - Elwood, Indiana - St. Cloud, Minnesota - Reidsville, NC - Pottsville, Pennsylvania - Alvarado, Texas - West Valley City, Utah.

Call, text, or chat with us if you have questions. 866-774-7743



Downloads

Brochure
Manual
Warranty
