TOPDON USA T-NINJA 1000 KEY PROGRAMMER

T-Ninja 1000 Key Programmer

The T-Ninja1000 is an OBDII key programming tool for the automotive immobilizer system. Its integrated RFID Induction Slot diminishes human error and picks up data instantly, making your workflow more efficient. With a real-time guided operation and built-in tips and hints, this product will minimize your downtime and speed up your work. This cost-effective device maximizes its value with so many practical functions.

• Read Pin Codes
• Read Pin Codes
• Add Keys and Erase Keys
• Step-By-Step Operating Tips
• Always Be Up-To-Date​ With TOPDON's Constant Upgrades and Work on the Latest Vehicles
• Database With Over 5,000 Vehicle Model Details
• Comes with an Integrated RFID Induction Slot
• ​Key Programmer​ through OBD - no soldering or EEPROM required

EXTENSIVE COVERAGE: Coverage for most Foreign and Domestic vehicles that require key programming through the OBDII diagnostic port.

TECHNICAL SUPPORT: The T-Ninja1000 includes access to a growing online database of tips, tricks, and walkthroughs.  The tool is supported by our industry-leading call center.

THOUGHTFUL DESIGNS: With rubberized outer protection and rugged internal housing, this tool is built for daily use in a shop environment

SPECIFICATIONS

Operating System: Rt-thread

CPU: ARM Cortex-M4, 180MHz

Display: 5.0” TFT LCD, 800*480 Resolution

Memory: 256M RAM, 128M ROM, 16G Micro SD

Material: ABS Plastic Shell, Silicone Button Starting time: ≤3S

Connectivity: USB1.1

OBD Interface: OBD-II 16PIN

Buzzer: 85db / min at10cm

Current: 500mA (typical)

Input Voltage: DV 12V

Power Consumption: 1.8W (typical)

Battery: 350mAh Button Battery (not rechargeable)

Working Humidity: ≤95% RH

Working Voltage: 12V ± 25%

Working Temperature: 14℉ - 131℉ ( 10°C - 55°C)

Storage Temperature:

Dimensions: 231.5*141.5*35mm (9.11*5.57*1.38 inches)

Weight: 480g (16.93oz)

Dimensions: 17" x 13.5” x 4.5” (Shipping)

Weight: 7 LBS. (Shipping)

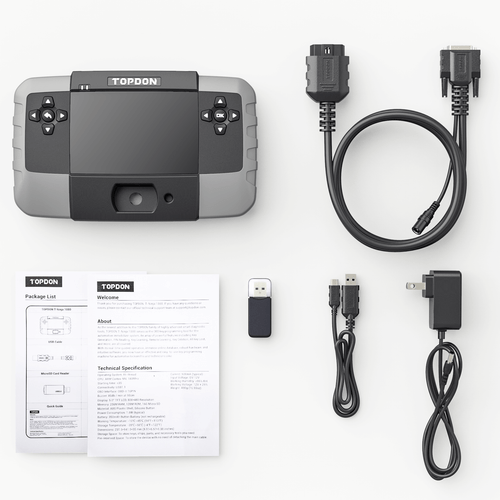

PACKAGE LIST

1 - T-Ninja1000 Tablet

1 - Diagnostic cable

1 - USB 2.0 Micro SD Reader

1 - Power Adapter

1 - USB Cable

1 - Quick-Start Guide

1 - Blow Molded Storage Case

WARRANTY & UPDATES

One Year Warranty
One Year of Updates

Specifications:

• Unit Length (inches): 9.11
• Unit Width (inches): 5.57
• Unit Height (inches): 1.38
• Unit Weight (lbs): 1.06

‍
