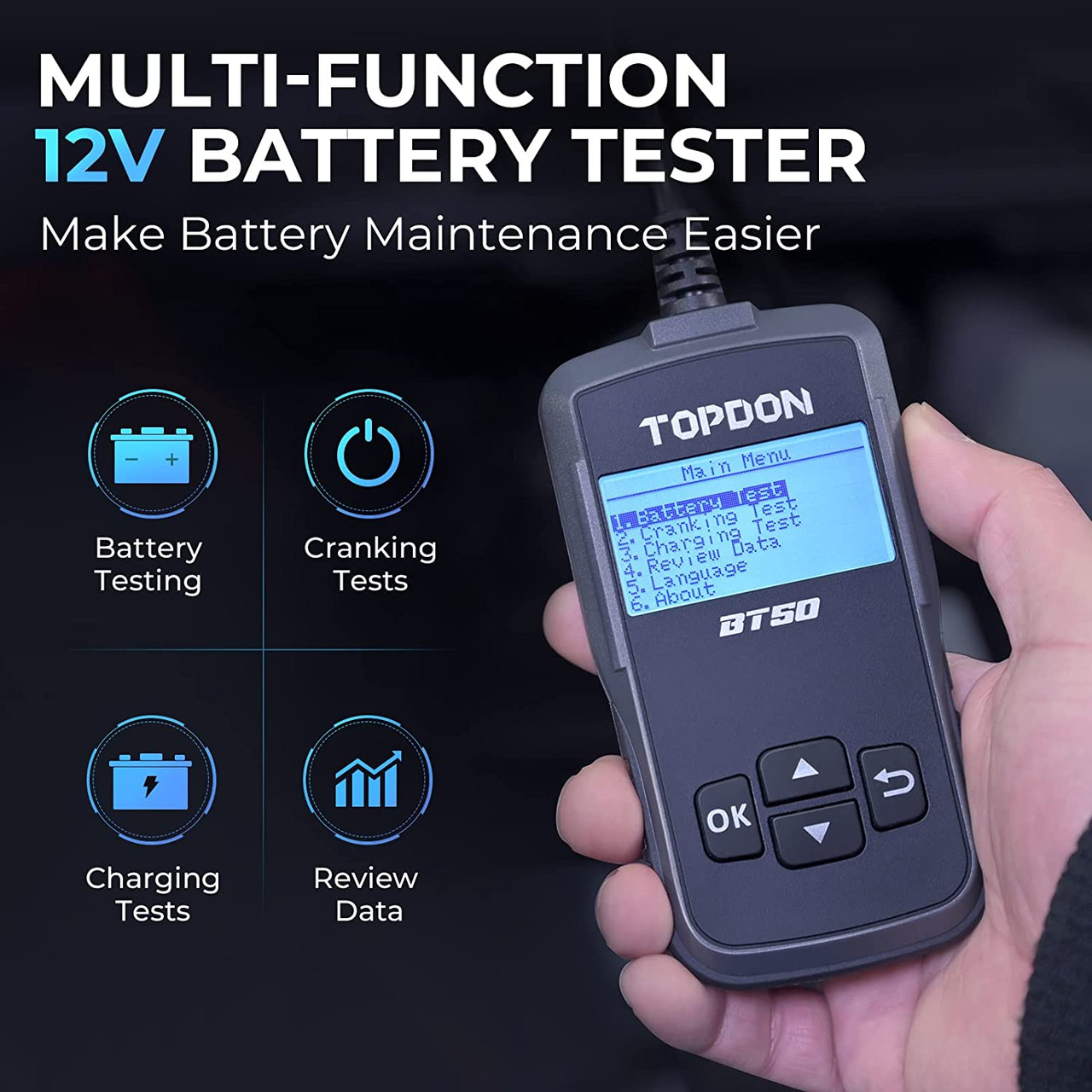

TOPDON BT50 BATTERY LOAD TESTER CRANKING AND CHARGING SYSTEM

TOPDON BT50 BATTERY LOAD TESTER CRANKING AND CHARGING SYSTEM

• Car Battery Tester 12V
• Automotive 100-2000 CCA Battery Load Tester Cranking and Charging System
• Auto Test Scan Tool Digital Battery Alternator Analyzer (Upgraded Version of AB101)

FEATURES:

• Test All 12V Batteries - The BT50 battery tester is a car battery checker for all 12v Lead-Acid batteries, with the most essential battery test functions: battery health testing, cranking tests, and charging tests. Use the data review function to view previous test data.
• Optimized Testing Technology - The BT50 car battery tester has been optimized and upgraded for detection speed and accuracy. Cutting-edge conductivity testing technology can help obtain battery test results faster and more accurately. Completing test results in seconds.
• Safety Above Everything - This battery health tester features innovative spark-free technology. It provides unparalleled safety to its users and avoids minimizes the risks of overheating. It also includes reverse polarity protection to prevent improper connections resulting in battery damage.
• Multi-Language Options - This digital battery tester features multiple language modes so that users can work in their preferred language to perform battery detection. It supports English, German, French, Italian, Spanish, and Russian.

HOW TO:

This car battery tester is ready to work right out of the box. It’s simple, straightforward, and requires no setup. Operating is a breeze:

1. Turn off the ignition, accessories, and loads.
2. Make sure the battery terminals are clean.
3. Correctly connect the clamps to the battery terminals (Red “+” to Positive; Black “–” to Negative).
4. The BT50 will power up once it gets connected to the battery you’re testing and is ready to function.

Notice: If the battery voltage is lower than 8V, the BT50 stops the test and displays a message indicating low voltage. Please charge the battery and test again.

RESULTS:

The battery monitor will show you one of the following results in minutes:

• GOOD BATTERY: The battery is in good condition.
• GOOD, CHARGING: The battery is good but has a low current; it needs to get recharged.
• REPLACE: The battery is almost dead, or there is a poor connection between the battery and the tester. Replace the battery or test it again. An out-of-vehicle test is recommended for a second test.
• RETEST AFTER CHARGING: Fully charge the battery and retest it. If the same reading occurs after the battery is fully charged, replace it.
• BAD CELL, REPLACE: The battery is broken, interiorly damaged, or has short circuit. Replace the battery.
