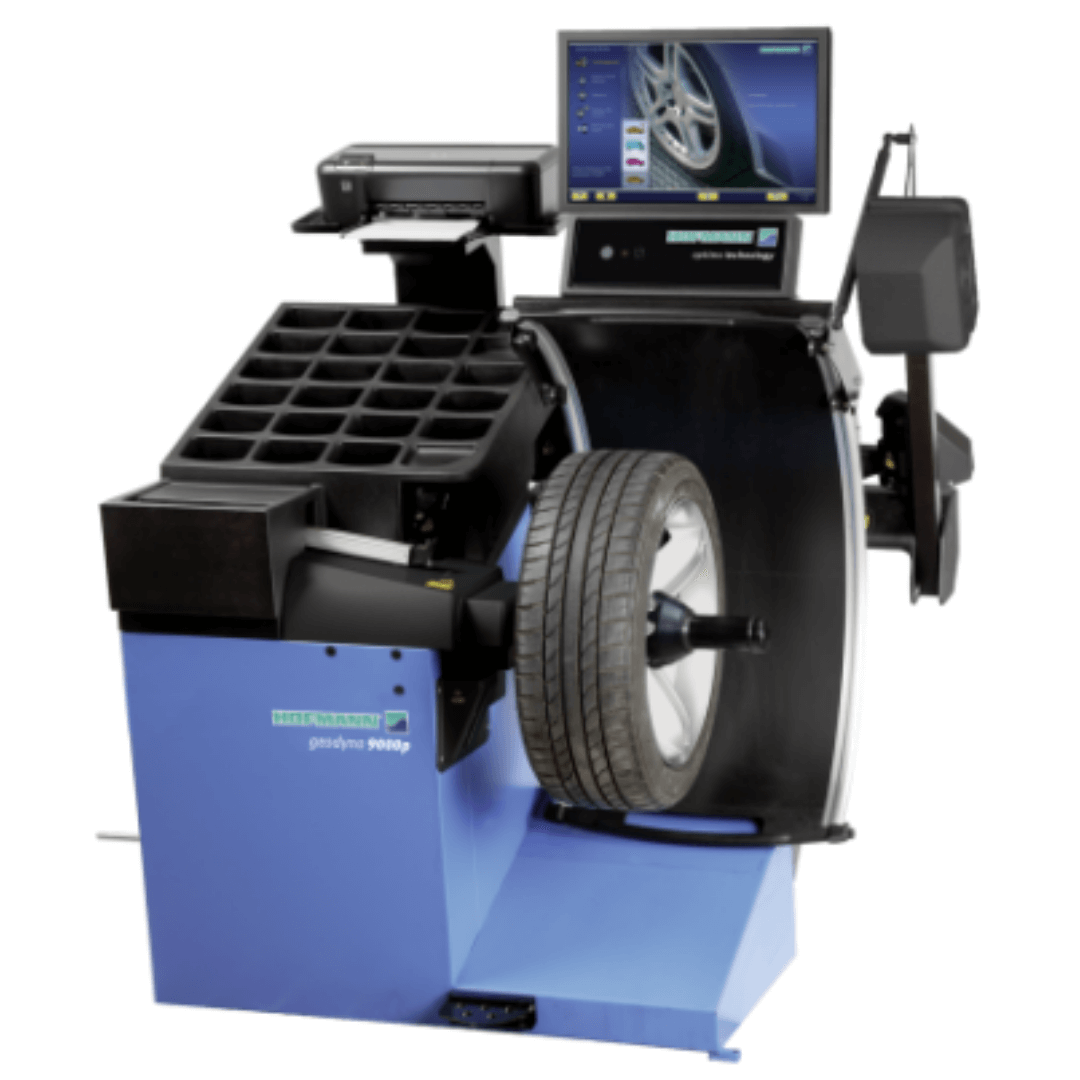

HOFMANN GEODYNA 9000P DIAGNOSTIC WHEEL BALANCER WITH TOUCH SCREEN AND 3D CAMERA TECHNOLOGY

Automatic Acquisition

‍Non-contact 3D imaging technology is virtually error-proof: just clamp the wheel, close the guard and let the geodyna 9000p do the rest. Automatic and non-contact detection of wheel dimensions, balancing mode, number and position of spokes, amount and position of weights, lateral and radial run-out of tire and rim, match mounting and geometric issues.

Run-Out Measurement

‍Non-contact 3D imaging technology scans the rim and tire profile to measure radial tire run-out, bead seat run-out on the bare rim and radial and lateral rim run-out on both sides.

3D Imaging

‍Five high resolution laser cameras scan the complete rim and tire profile to provide visual evidence of results, increase customer awareness and improve customer satisfaction.

Run-Out Force Vectoring (RFV)

‍Determines the virtual loaded run-out contact patch of the wheel assembly and calculates the spring rate by measuring tread width, sidewall height, surface singularities and estimated tire pressure.

Sidewall & Tread Analysis

‍The wheel is scanned to within 0.1 mm accuracy to examine all externally visible scratches, cuts, bulges, blisters, flat spots and uneven wear-out that could potentially lead to safety issues.

Tire Wear-Out Prediction

‍Predicts the tire wear-out point to help prepare the customer for when a replacement will be needed.

Advanced Spoke Detection

‍Detects spokes to provide optimum placement of weights, allowing for accurate balancing of alloy spoke rims while preserving their visual appearance.

Wheel Data Freeze

‍Allows the operator to save the data detected on the first rim of a set of identical wheels, reducing data acquisition time for subsequent identical wheels.

Smart Profile

‍Automatically detects optimum balancing program by determining the amount, position, and type of the balance weights on the basis of rim dimensions saved in memory and imbalance data determined during measurement.

Patented Automatic Power Clamp

‍Ensures consistent and constant wheel-clamping force, ensuring accurate balance on all wheels.

EZ-Collets

‍Mobile app helps service technicians identify the best tools for their wheel balancing jobs. Using the EZ-Collets mobile app, service professionals can select a vehicle to find and compare options for the best collet, flange, or quick plate for the wheel. The app also provides information about the tire and rim for the vehicle.
