DANNMAR DB-70 Automatic Wheel Balancer

SKU/Product #: 5140159

Dannmar

Write a review
$2,592.00


Free Shipping
7-10 Business Days
Shipping Calculated at Checkout
7-10 Business Days
Power Options
Pick Up and Save

Product Description

Your shop can install new brake rotors, pads, and tires on your customer’s car, but they will judge everything they paid for on how perfectly their tires were balanced. Give them everything they deserve and know that a vibration-free tire balance with Dannmar’s DB-70 Wheel Balancer is the shining star on your work.

Dannmar’s DB-70 Wheel Balancer Keeps Everything Running Smoothly

Dannmar’s DB-70 wheel balancer handles wheels up to 28” diameter. The DB-70 is a highly accurate and dependable balancer that features Dannmar’s Digital Sensor Technology providing excellent reliability.

Most wheels can be quickly mounted to the balancer with the DB-70’s multi-size center cones. The full rubber perimeter no-mar “Quick-Nut” bell adapter carefully and tightly secures the tire and wheel.

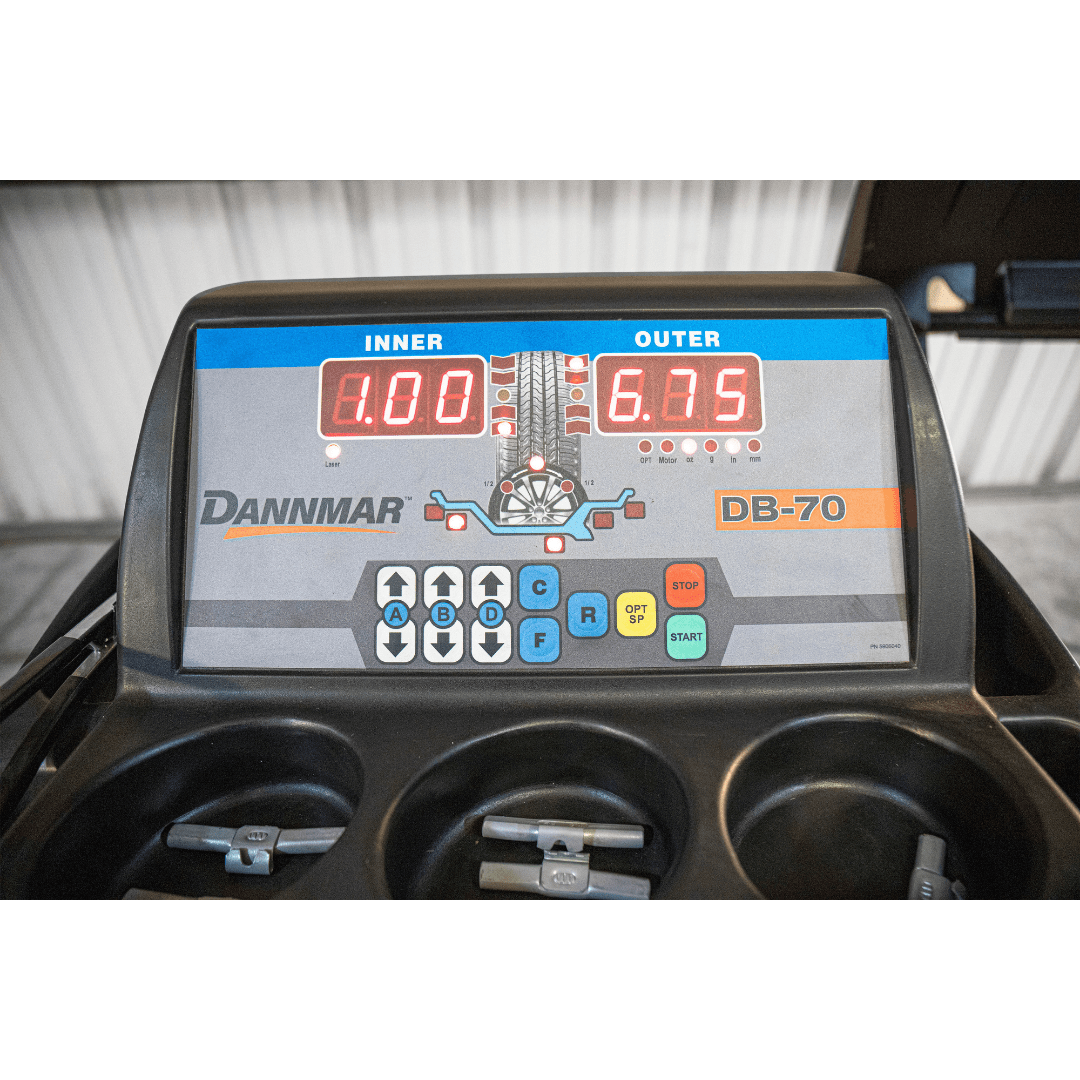

An easy touch-pad panel displays tire and wheel assembly graphics. This helps simplify entry of wheel data and supports technicians through balancing procedures.

With the wheel setup on the balancer, the Dannmar wheel balancer automatically calculates the precise weight required to achieve an optimal balance. The brightly displayed LEDs indicate the exact amount and location of weight in just seven seconds. A full menu of time-saving features, including Dynamic and Static settings, allows you to balance most wheels with minimal effort and quick speed.

Dannmar’s DB-70 wheel balancer is ruggedly built and provides perfectly balanced wheels every time. With a proven dynamic and static wheel balancer to ensure smooth-spinning results, Dannmar provides a machine your technicians can use to keep the workflow moving and your busy customers happy.

Product Features

  • Six dynamic balancing modes and one static balancing mode
  • Manual wheel offset distance setting
  • Auto-start when hood is lowered
  • Wheel holding manual brake pedal
  • Truck cone/spacer ring adapter set
  • No-mar rear cone mount pressure cup
  • Quick-release and mount hub nut
  • LED rolling wheel weight displays
  • Easy-to-use controls

Product Specifications

Motor 110-230 VAC, 50-60 Hz, 1-Ph
Cycle Time 7 Seconds
Balancing Modes 6 Dynamic / 1 Static
Drive System Serpentine Poly-V Belt
Wheel Braking Lever Caliper Brake / Foot Pedal
Cones Included 4
Max. Tire Diameter 49” (1,247 mm)
Max. Tire Weight 150 lbs. (68 kg)
Wheel Diameter Capacity 10” - 28” (254 mm - 711 mm)
Wheel Width Capacity 1.5” - 20” (38 mm - 508 mm)
Balancing Increments 0.25 or 0.01 ounce
Balancing Speed 260 RPM
Accuracy +/- 1 Gram (.035 oz)
Noise < 70 dB
Shipping Weight 292 lbs. (132.4 kgs)
Shipping Dimensions 38" x 30" x 46" (965 mm x 762 mm x 1,168 mm)
