DANNMAR D4-9 9,000 4 Post Lift Package

SKU/Product #: 5175319

Dannmar

Write a review
$6,995.00
$7,345.00


Free Shipping
7-10 Business Days
Shipping Calculated at Checkout
7-10 Business Days
Power Options
Pick Up and Save

Product Description

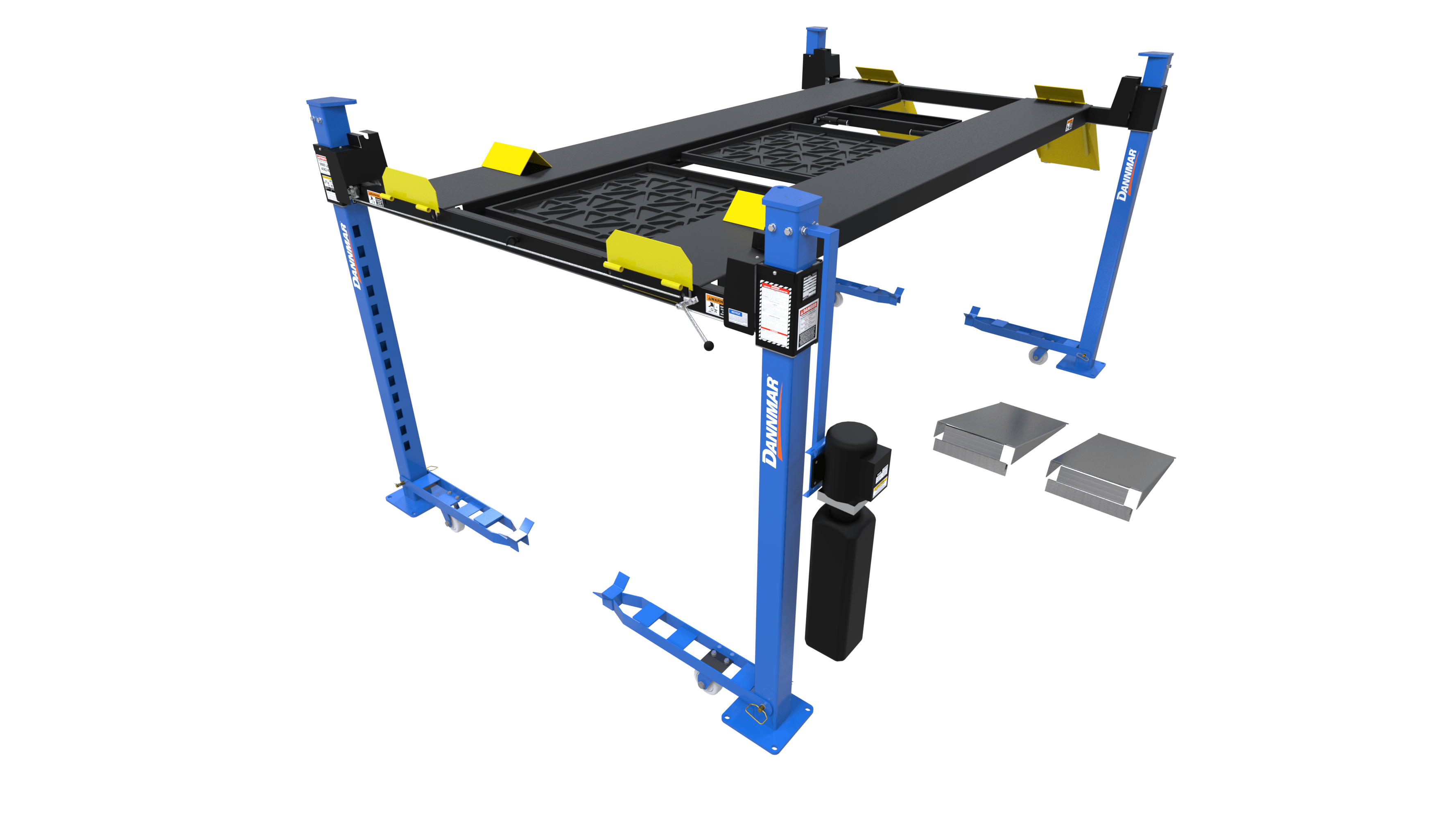

Dannmar’s D4-9 four-post lift delivers versatile productivity while allowing you to easily store project cars, classics, daily drivers, or even heavy pickup trucks. Dannmar’s D4-9 also comes standard with the accessories that most other car lift companies charge extra for. Mobile caster kits, drip trays, aluminum ramps, and more are all included. But a BIG plus of this four-post lift series is that you can store a vehicle raised above; and while having an open working space below. Dannmar’s D4-9 serves double-duty.

Dannmar’s D4-9 four-post lift features welded-steel construction, long-lasting proven design, a commitment to quality, safety, and value. The D4-9 four-post lift is built with the strength to lift some very heavy vehicles (9,000 lbs.) and it has the lifting speed to raise vehicles quickly.

One of the D4-9’s best attributes is that it allows you to store a vehicle fully raised above the ground, while benefiting from the open space below. This means you have more open floor space below for repairs or storage. In other words, both vehicle parking and ground storage on the same footprint.

Each Dannmar D4-9 comes with four quick-mount casters so that you can move the lift across the floor. Also included are lightweight-and-tough polyethylene drip trays, a mobile jack tray, easily removable aluminum approach ramps, forward and rear-mounted hardened steel tire stops.

Product Features

  • The D4-9 is designed to be fastened to the floor or free-standing.
  • Comes standard with a mobile caster kit, drip trays, mobile jack tray, aluminum approach ramps, and hardened steel tire.
  • Boxed-steel columns are made from structural 4.75” x 4.75" welded steel tubing.
  • Columns feature 12” x 12” baseplates 5/8” thick.
  • Manual dead-bolt locks are reliable and safe and are machined directly into the boxed-steel columns.
  • 3/4" thick steel safety locks are spring loaded for automatic and solid engagement.
  • 13 positive locking positions are spaced every 4 inches.
  • Secondary slack-cable lock system assures instant back-up safety lock engagement in the event of a cable failure.
  • Exterior steel sleeves with UHMV slides surround each column to ensure positive contact and containment.
  • Welded-steel runways feature utility rail for jack tray and drip trays and other accessories.
  • Built-in flow restriction integrated into the hydraulic cylinder to prevent free-fall.
  • Oversize baseplates and full-perimeter cross tube sleeves reduce lateral movement and sway when lift is free-standing.
  • Low-profile runways are only 5" high to accommodate low ride-height vehicles.
  • Hardened steel safety lock linkages use 3/8” molded carbon steel rod ends to reduce flex and twist to ensure positive locking and smooth operation.
  • Precision, reinforced rod ends with spherical bearings are protective coated for corrosion resistance and are designed to provide low friction and high wear resistance.
  • 5/8" thick top caps.
  • Pull out tire stops on both ends of the lift that allows drive through capability.
  • Stainless steel lifting cables are rated to handle over 14,000 lbs. each.
  • Pre-assembled cables simplifies installation.
  • 36" aluminum approach ramps are gusseted to eliminate flex and bending.
  • 3/4" runway bolts provide positive attachment with increased safety factor.
  • Optional full-length aluminum platforms can be added to easily store lawnmowers, ATVs, jet skis or motorcycles.
  • ALI certified


Product Specifications

Capacity

Lifting Capacity: 9,000 lbs
Max. Capacity / Front Axle: 4,500 lbs
Max. Capacity / Rear Axle: 4,500 lbs

Rise

A: Minimum Height 5" (0.41 ft.)
B: Max. Rise (Under Runway) 70" (5.83 ft.)
C - Max. Lifting Height: 75" (6.25 ft.)
Lifting Time: 60 Seconds

Outside Dimensions

F - Overall Width: 114 1/2" (9.54 ft.)
H: Overall Length 203" (16.91 ft.)
I: Outside Length 176 1/2" (14.70 ft.)

Inside Dimensions

G - Width Between Columns: 98" (8.16 ft.)
E: Drive-Thru Clearance 86" (7.16 ft.)

Runways

M - Runway Width 18 3/4" (1.56 ft.)
N - Runway Length 165 1/2" (13.79 ft.)
J: Width Between Runways 37 1/2" (3.12 ft.)
L: Outside Edge of Runways 72 1/2" (6.04 ft.)

Power Unit

Motor: 110VAC, 50-60HZ, 1PH, 20A or 208-230VAC, 50-60HZ, 1PH, 25A


Shipping

Weight: 1,188 lbs
Dimensions (LxWxH): 166" x 22" x 41"

Pick Up and Delivery

Our Pick Up locations for Bendpak/Dannmar/Ranger are located in Santa Paula, California & Theodore, Alabama.

Call, text, or chat with us if you have questions. 866-774-7743
