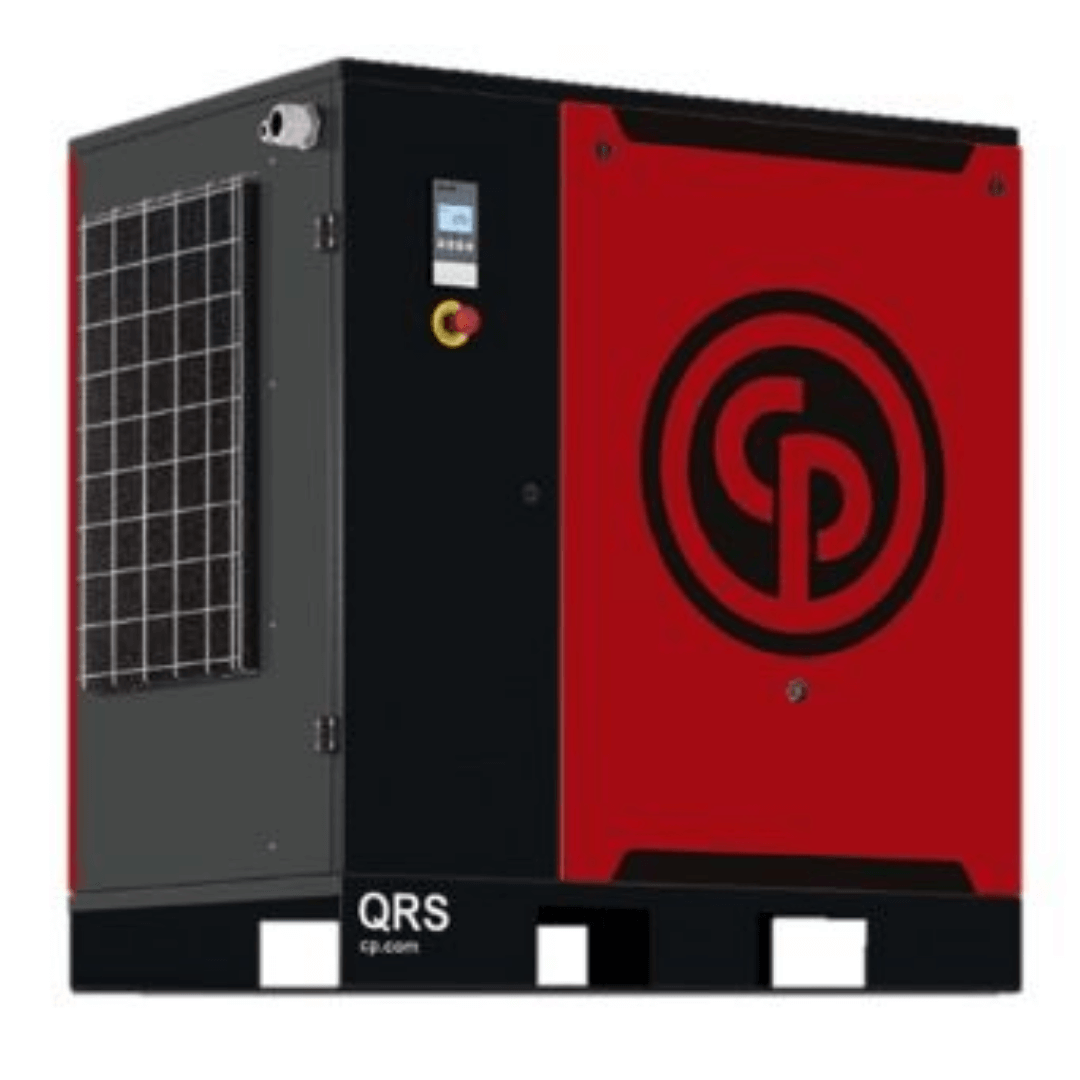

Chicago Pneumatic QRS25HPD 25 HP Base Mount Rotary Screw Air Compressor with Dryer

Chicago Pneumatic QRS25HPD 25HP Base Mount Rotary Screw Air Compressor with Dryer

Chicago Pneumatic Rotary Screw Air Compressors are made in Italy by the worlds largest air compressor manufacturer, Atlas Copco. Known worldwide for quality air compressors, you can feel confident that your CP air compressor will do the job you need it to do.  Chicago Pneumatic rotary screw compressors are 100% duty, and are extremely quiet. 5 Year Warranty is available.

QRS25HPD Features And Specs:

• 25 HP 208-230/460 Volt Three Phase
• Integrated Air Dryer
• TEFC Motor
• 109 CFM @ 100 psi
• 98 CFM @ 125 psi
• 89 CFM @ 150 psi
• 125 psi is Standard - 175 psi is Available (See below for Conversion Kit)
• Low Sound Enclosure 72 dBA
• Wye-Delta Reduced Voltage Star
• ES3000 Microprocessor Controller
• 100% Duty
• Space Saving Design (<12 sq. ft.)
• Load/No Load with Intelligent Shutdown
• Spin-on Filter and Separator
• NEMA 1 Electrical Protection
• Vibration Isolated Assembly
• UL and cUL Approved Control Panel

Operation

• Compressed air enters the QRS where it is triple-filtered before it enters the dryer
• The QRS is completely piped, wired and installed adjacent to a CPX non-cycling, Refrigerated Dryer
• The dryer is powered by separate 115V/1 power and comes with electro-pneumatic controls for simple operation and trouble shooting
• Condensate is extracted from the compressed air by the dryer and is removed by a zero loss electronic drain (on dryer).

‍
