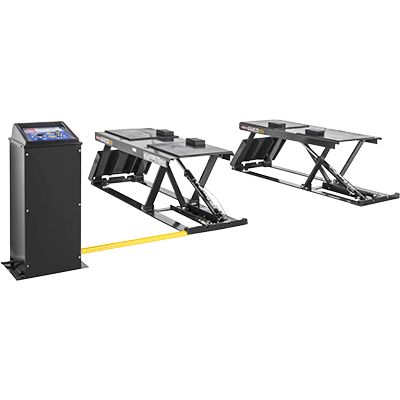

BendPak P-9000LTF 9,000 lb. Capacity Low-Rise Lift

SKU/Product #: 5175155

BendPak

Write a review
$5,595.00


Free Shipping
7-10 Business Days
Shipping Calculated at Checkout
7-10 Business Days
Power Options
Pick Up and Save

Product Description

BendPak P-9000LTF 9,000 lb. Capacity Low-Rise Lift

The P-9000LTF is one of the industry's highest-capacity low-rise scissor lifts. It offers a flush-mounted and open-center design, so you can lift heavy-duty equipment without taking up an inch of vertical space in your shop when the lift is not in use.

Massive Power and Zero Footprint

The P-9000LTF is BendPak's 9,000-lb. offering that simply increases the lifting power of the P-6BF pit lift. No matter what you're working on, BendPak has the capability to lift it. High-stance trucks and SUVs can be easily serviced with the optional arm extension kit and truck adapter set. With this much lifting potential, there's almost no lift point spread or vehicle frame the P-9000LTF can't handle. Shops run faster and earn more with the super-efficient P-9000LTF at their disposal. A host of clever engineering devices and standard features ensure this car lift will last for many years of valuable service.

Pneumatic lock release

Other brands still utilize older-style spring releases on their pit-lifts. These springs are less effective for low-rise lift styles because they eventually require maintenance. Flush-mounted operations leave the springs invisible most of the time, so it's harder to inspect them unless vehicles are being lifted. Air cylinders are extraordinarily safe and do not require maintenance, just a simple 50 psi charge every once in a while.

Low-profile design

When flush-mounted, the zero-footprint P-9000LTF virtually disappears. This design takes up less space in your shop, permitting easier movement around tight areas.

Rugged steel channel frame

Everything about this lift is heavy-duty. Its super-wide frames will handle any size vehicle frame, and the steel bars themselves are power coated throughout a 10-step process that ensures the very best in quality and durability. The steel, as well as the finish, make your BendPak as reliable as any lift ever made.

Solid rubber lift blocks

Hard rubber blocks come with every BendPak lift. We don't play around when it comes to trust, so these blocks are just made tougher than anyone else's. No flimsy contact pads that rip and cost you more down the road. Blocks sit squarely on the lift's frame and even add a few more inches to your lift's capability.

Optional arm set

Trucks, SUVs and other long-wheelbase vehicles may require more than the simple rubber blocks to gain adequate clearance over the lift. Our arm kit provides offset lifting and additional height to handle everything that rolls your way.

Detachable ramps

The P-9000LTF pit lift mounts flush against the concrete. If you have the P-9000LT model

Detailed instructions

The P-9000LTF comes with extremely detailed and easy-to-read instructions. Safety decals and stick-on labels are included and can be replaced any time by contacting BendPak direct.

Product Features

  • 9,000-lb. lifting capacity
  • Reinforced parallel lifting arms to better support inboard loading
  • Reinforced upper lift platform to better support inboard loading
  • Dual-pump power unit with built in proportioning valve
  • Easily convert fast-lube pits into wheel service work bays
  • Mounts outside the pit rail without interfering with center work area
  • Model P-9000LTF flush-mount model provides recessed drive-over option
  • Heavy duty 1.5 HP electric-hydraulic power unit
  • Electronic push-button controls allow smooth, single-hand operation
  • Automatic multi-position safety locks with air release deliver safe, remote operation
  • Powder-coat finish
  • Durable rubber-topped pad surface and rubber lift blocks provide quick set-up
  • Enhanced adjustable (optional) lifting arms

Product Specifications

Lifting capacity 9,000 lbs. (4,082 kg)
Lifting Height 24” (610 mm)
Lifting height + blocks 27” (686 mm)
Overall Lift Platform Length 58.5” (1,484 mm)
Overall Lift Platform Width 24” (610 mm)
Fully Lowered 4" (102 mm)
1st Lock 15" (381 mm)
2nd Lock 19" (483 mm)
3rd Lock 21.5" (546 mm)
4th Lock/td> 23.5" (597 mm)
Full Rise 24" (610 mm)
Overall Length 74.4” (1,890 mm)
Lowered height 4" (102 mm)
Lifting Time 55 seconds
Motor 1.5 HP / 208-230 VAC / 60 Hz / 1 Ph
Shipping Weight 1,134-lbs. (514 kg)
Shipping Dimensions 77" x 40" x 24" (1,943 mm x 1,016 mm x 609 mm)

Pick Up and Delivery

Our Pick Up locations for BendPak are located in Santa Paula, California & Theodore, Alabama.

Call, text, or chat with us if you have questions. 866-774-7743

Downloads

Brochure
Manual
Warranty
