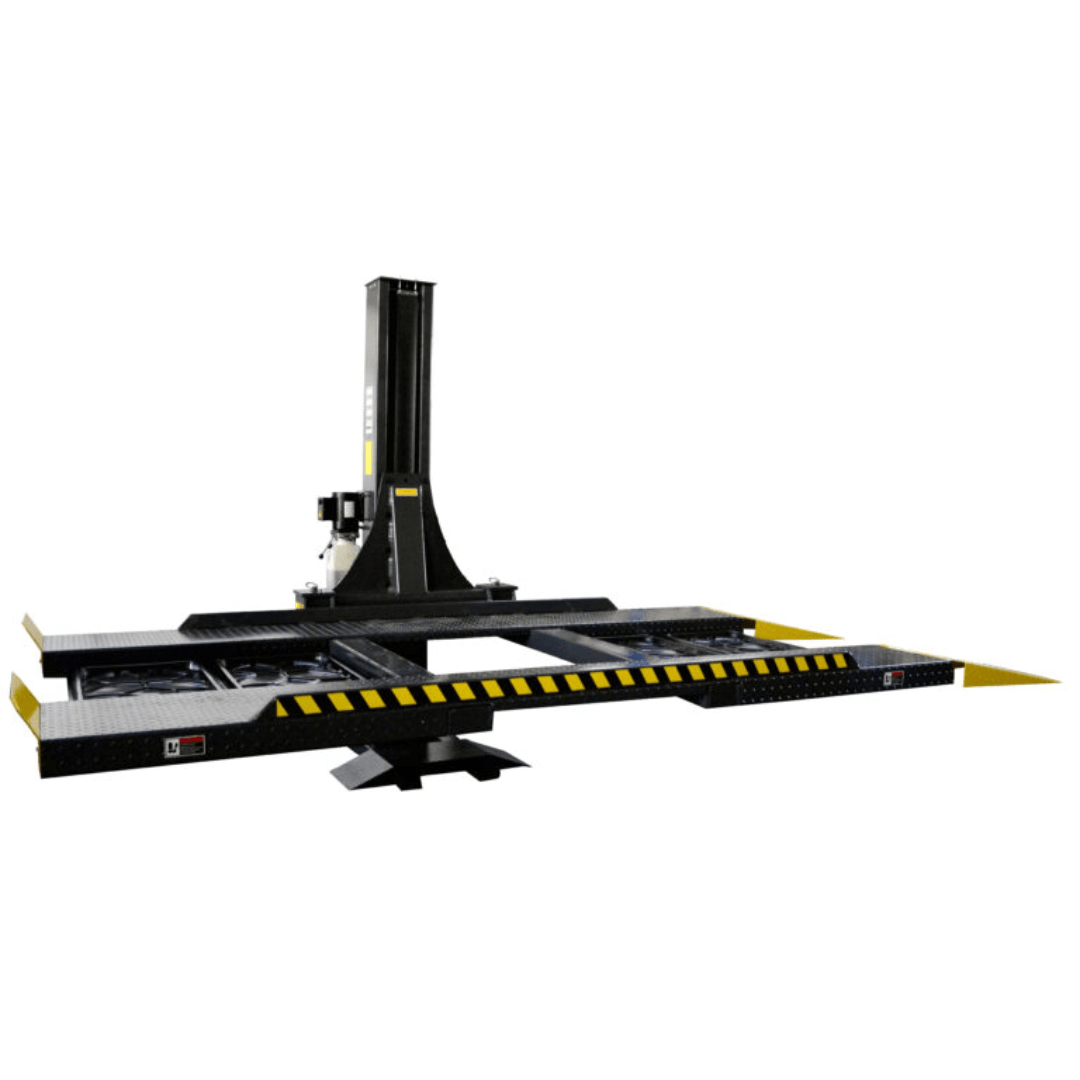

The SPL-6 is our newest single-post parking lift. This lift combines AMGO high quality with space-saving design and easy operation. The SPL-6 is a great fit for home garages and commercial shops.
• 6,000lbs lifting capacity
• Manual safety lock release
• Non slip lifting platform
• H-shaped lifting platform with reinforced column
• Low post height for low ceilings
• Suitable for home garages and commercial applications
• Reversible Drive in ramps (drive in from either side)
• ETL certified power unit
Model | SPL-6 |
---|---|
Lifting Capacity | 6,000lbs |
Lifting Time | 84s(110V) 32s(220V) |
A: Overall Height | 108 7/8″ (2766mm) |
B: Max. Lifting Height | 74″ (1880mm) |
C: Max. Underneath Height | 69 1/4″ (1760mm) |
D: Minimum Height | 6 3/8″ (160mm) |
E: Overall Width | 111″ (2820mm) |
F: Outside Edge of Runways | 82 3/8″ (2093mm) |
G: Width Between Runways | 42 3/8″ (1077mm) |
H: Platform Length | 152″ (3860mm) |
I: Overall Length | 192 1/8″ (4880mm) |
Gross Weight | 2,725lbs (1235kg) |
Motor | 1.0HP/110V 2.0HP/220V |
